Veltrea Syslog Server / v0.4.0

Syslog that doesn't mangle your text.

The character encoding is decided per message, so a Shift_JIS appliance and a UTF-8 appliance can share one port and both stay readable. Single file, no installer.

Download v0.4.0 Manual Windows / macOS / Linux (x86_64)
Written in Rust, MIT License

RECEIVING 0.0.0.0:514 / UDP RX 0000

1decision per message

5ways it decides

8severities

3shapes

0installers

Decoded one at a time, with the evidence shown

Nothing locks the whole stream to one encoding. The evidence it settled on appears in the Enc column, so you can decide whether to trust what you are reading.

One datagram / RFC 3164 / UTF-8 payload

What arrived on the wire 3c 31 33 32 3e 61 75 74 68 3a 20 e8 aa 8d e8 a8 bc e3 81 ab e5 a4 b1 e6 95 97 e3 81 97 e3 81 be e3 81 97 e3 81 9f 3a 20 …

A receiver locked to one encoding <132>auth: 隱崎ｨｼ縺ｫ螟ｱ謨励＠縺ｾ縺励◆: 繝ｦ繝ｼ繧ｶ繝ｼ admin

What vlt-syslogd shows 認証に失敗しました: ユーザー admin (3 回目)Enc: UTF-8

UTF-8 / Shift_JIS: Arrived in RFC 3164 or bare BSD framing and was decoded from the byte pattern.
Shift_JIS (MSG-SD/BOM-Missing): RFC 5424 structured data declared charset="Shift_JIS" and was believed. No BOM was present.
UTF-8 (MSG-UTF8/BOM): No declaration, but a BOM, so it was read as UTF-8.
UTF-8 (Implicit): Neither declaration nor BOM, but the bytes were valid UTF-8.
Shift_JIS (Guess): No evidence at all; inferred from the bytes.

The original bytes are kept, so any row can be copied back out with Copy as Hex — which tells you whether a display problem is on the wire or in the viewer.

One engine, three shapes

The part that reads syslog is the same code in all three; only how you run it differs. Start with Portable if you are not sure.

Portable

vlt-syslogd-portable

A self-contained GUI that opens the UDP socket itself. Double click it and it is already receiving. No installer, no service.

Bind: 514/udp
Priv: none (Windows)
Resident: no

Server

vlt-syslogd-srv

The headless engine. Runs as a Windows service, a launchd daemon or a systemd unit, collecting from boot and writing to disk.

Bind: 514/udp
Stream: 5141/tcp
Ctrl: 5142/tcp
Resident: yes

Console

vlt-syslogd-console

The GUI that attaches to a running Server over TCP. Closing it does not stop collection. Service control lives here too.

Link: 127.0.0.1:5141
Ctrl: 127.0.0.1:5142
Resident: no

The stream (5141) and control (5142) channels are loopback-only by default and protected by a shared token. See the network section of the manual.

The real thing

Captured from the v0.4.0 Windows release binaries running on Windows 11, fed a syslog stream mixing UTF-8 and Shift_JIS.

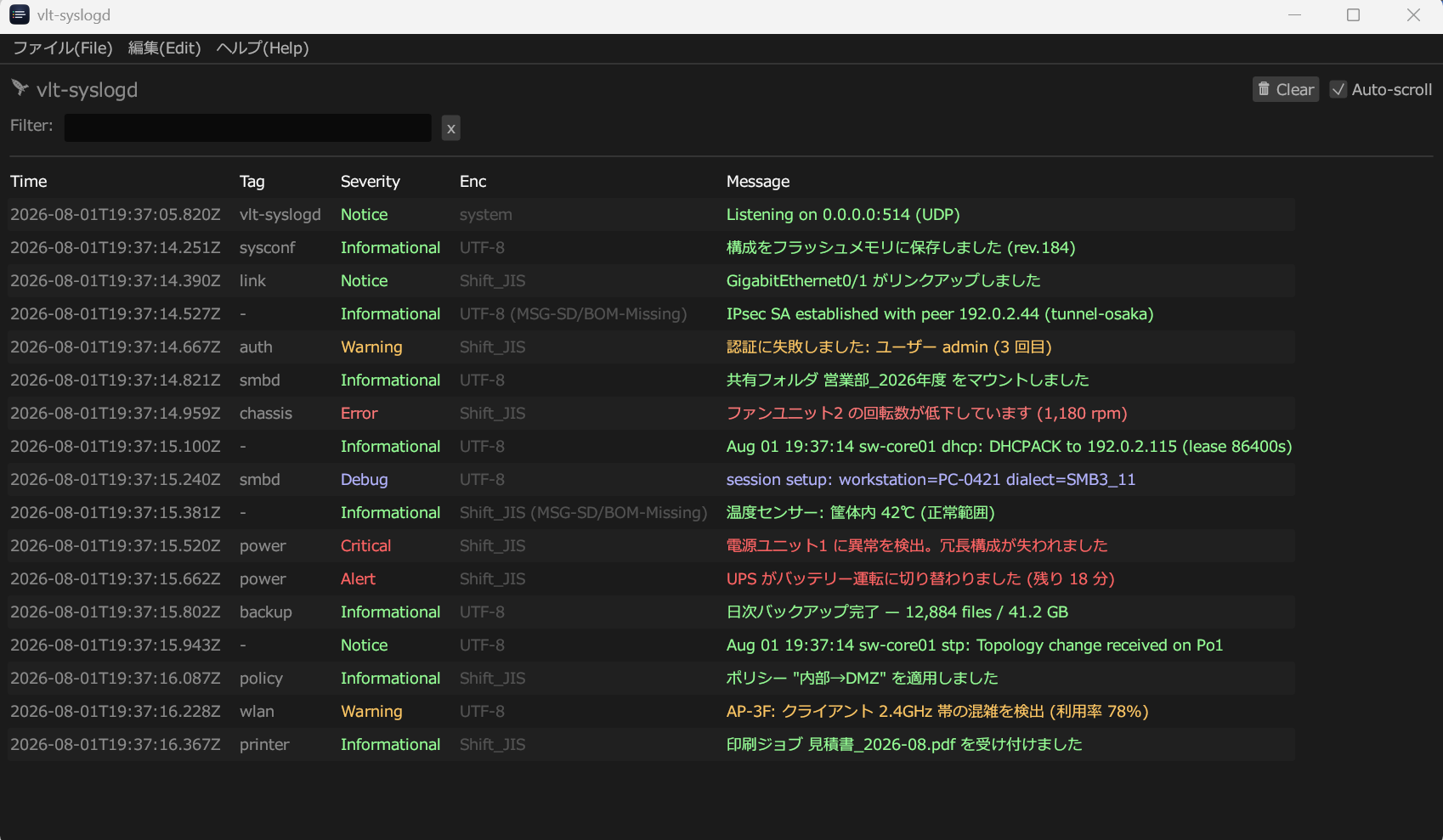

The Portable log view: five columns — Time, Tag, Severity, Enc, Message — showing UTF-8 and Shift_JIS Japanese messages rendered correctly side by side. — **Portable — the log view** The Enc column carries `UTF-8`, `Shift_JIS` and `Shift_JIS (MSG-SD/BOM-Missing)` in the same screen — different senders, different framings, all readable. Open full size

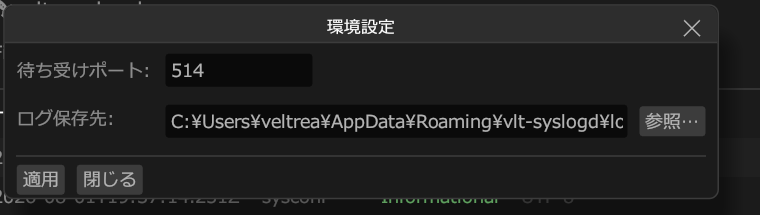

The preferences dialog: listening port 514 and the log directory path.

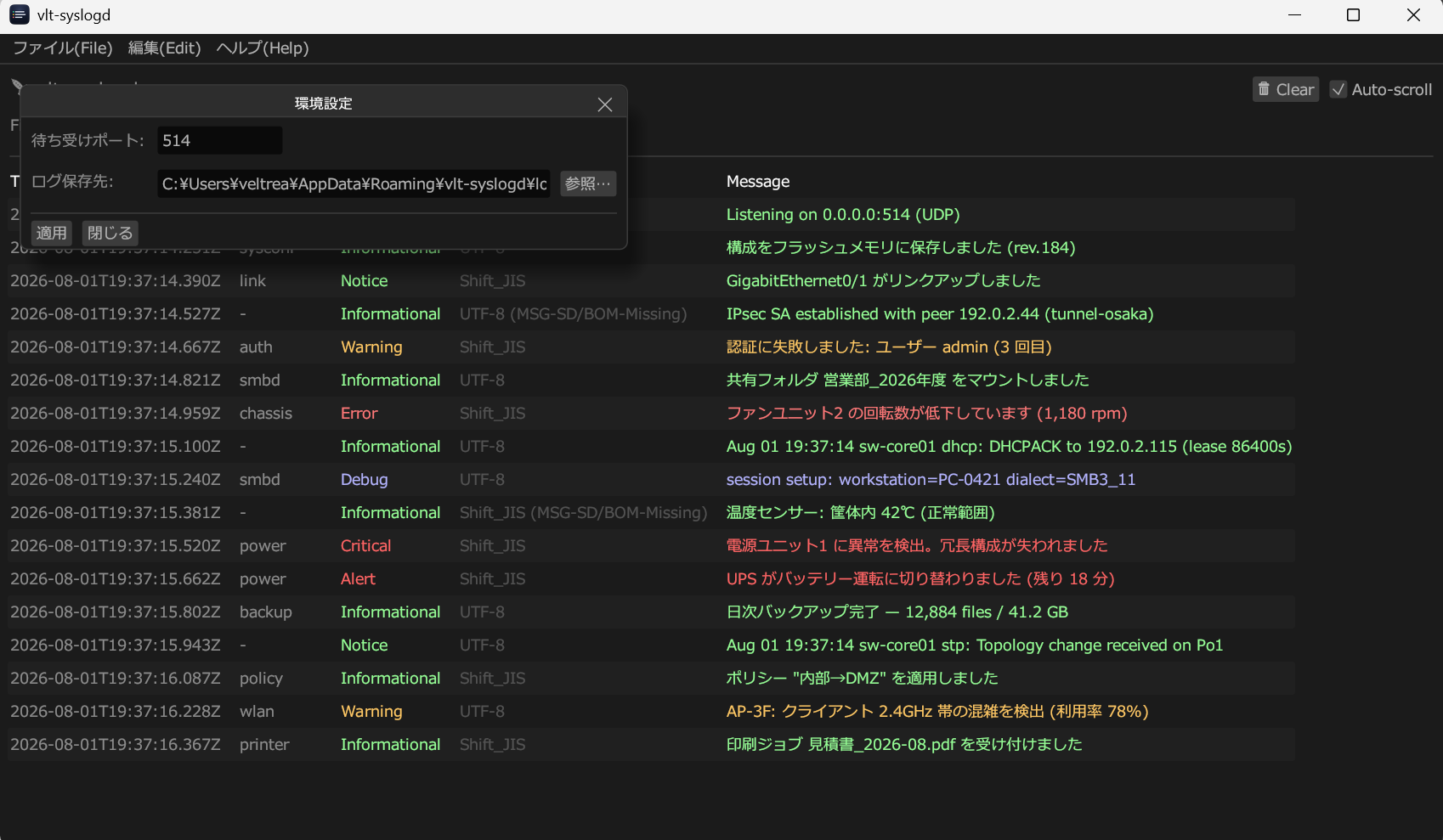

Preferences Two settings: the port to listen on and where to write logs. If 514 is already taken, change it here. Whether the bind succeeded is printed as the first row of the log view. Open the whole window

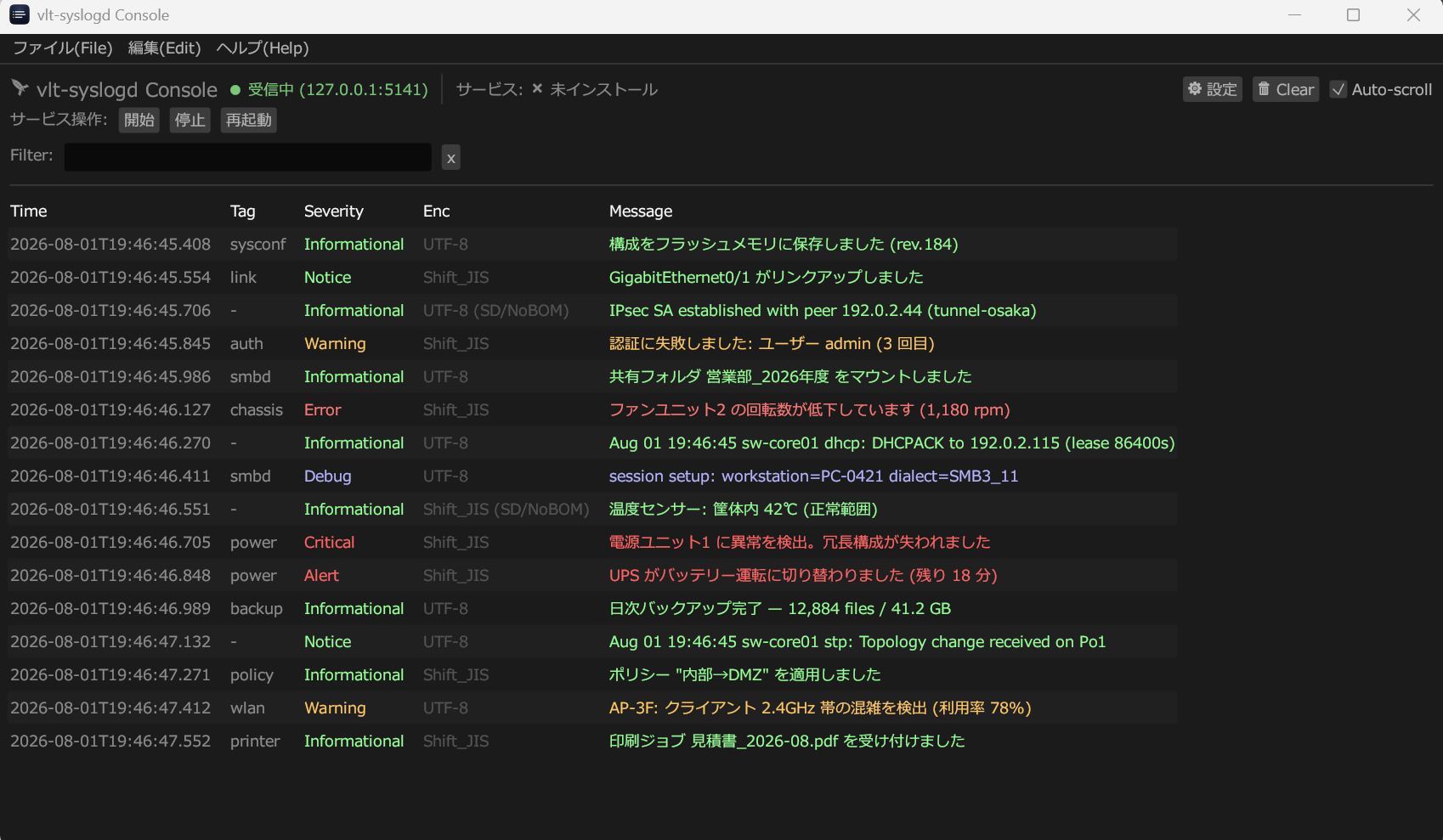

Console attached to Server: a green 'receiving (127.0.0.1:5141)' indicator and start/stop/restart service buttons. — **Console — attached to a resident Server** The green indicator means the stream channel is live. Service start, stop and restart are here too. (In this capture the engine was launched directly rather than registered, so the service state reads "not installed".) Open full size

Get it and run it

Latest is v0.4.0. Take only what your case needs.

OS	Shape	File
Windows	Portable	`vlt-syslogd-portable-windows-v0.4.0.zip`
Windows	Server + Console	`vlt-syslogd-srv-windows-v0.4.0.zip` `vlt-syslogd-console-windows-v0.4.0.zip`
macOS	Portable	`vlt-syslogd-macos-portable-v0.4.0.dmg`
macOS	App	`vlt-syslogd-macos-app-v0.4.0.dmg`
Linux	Portable (single ELF)	`vlt-syslogd-linux-x86_64-portable-v0.4.0`

Unzip and open it

Portable needs no installation. Unzip and double click vlt-syslogd-portable.exe. If SmartScreen appears, choose "More info" then "Run anyway".
Check the first row

Listening on 0.0.0.0:514 (UDP) means the socket is open. If it failed, pick a port above 1024 in Preferences.

Send yourself one message

A row should appear immediately.

$u = New-Object System.Net.Sockets.UdpClient
$b = [Text.Encoding]::UTF8.GetBytes('<132>auth: login failed')
$u.Send($b, $b.Length, '127.0.0.1', 514) | Out-Null; $u.Close()

Making it resident, or receiving from other devices, is in the manual.

Worth knowing first

514 is a privileged port on macOS and Linux

Ports below 1024 need root. On macOS (Mojave and later) 0.0.0.0:514 does not, but binding a specific interface such as 127.0.0.1:514 still does. On Linux you need root or CAP_NET_BIND_SERVICE.

The macOS builds are ad-hoc signed, not notarized

There is no Apple Developer account behind this project, so Gatekeeper stops the first launch. Right click → Open once, or clear the quarantine flag with xattr -dr com.apple.quarantine.

"Service running" is not "port reachable"

A running Server with a firewall in front of UDP 514 receives nothing. When remote logs do not arrive, check bind_addr, then the firewall, then the sender's destination address.
